SPECIFICATIONS

APP Control: Tuya Smart Life

Application: Residential / General-Purpose

Brand Name: UNSH

Certification: CE,RoHS

Conductive material: Phosphorous copper

Extension Cable Length: None

Features: Automatically Power On and Off,Remote Control,With USB Ports,WireLess

Grounding: Standard Grounding

Installation Type: Wall Mounted

Is Smart Device: Yes

Material: Plastic

Model Number: EU Smart WIFI Socket

Number of slots: 3 or more

Origin: Mainland China

Output current: 15A

Protection class: IP 44

Protective function: overload protection

Rated Current: 15A

Rated frequency: 50/60HZ

Shape: Rectangular

Socket Type: Combined

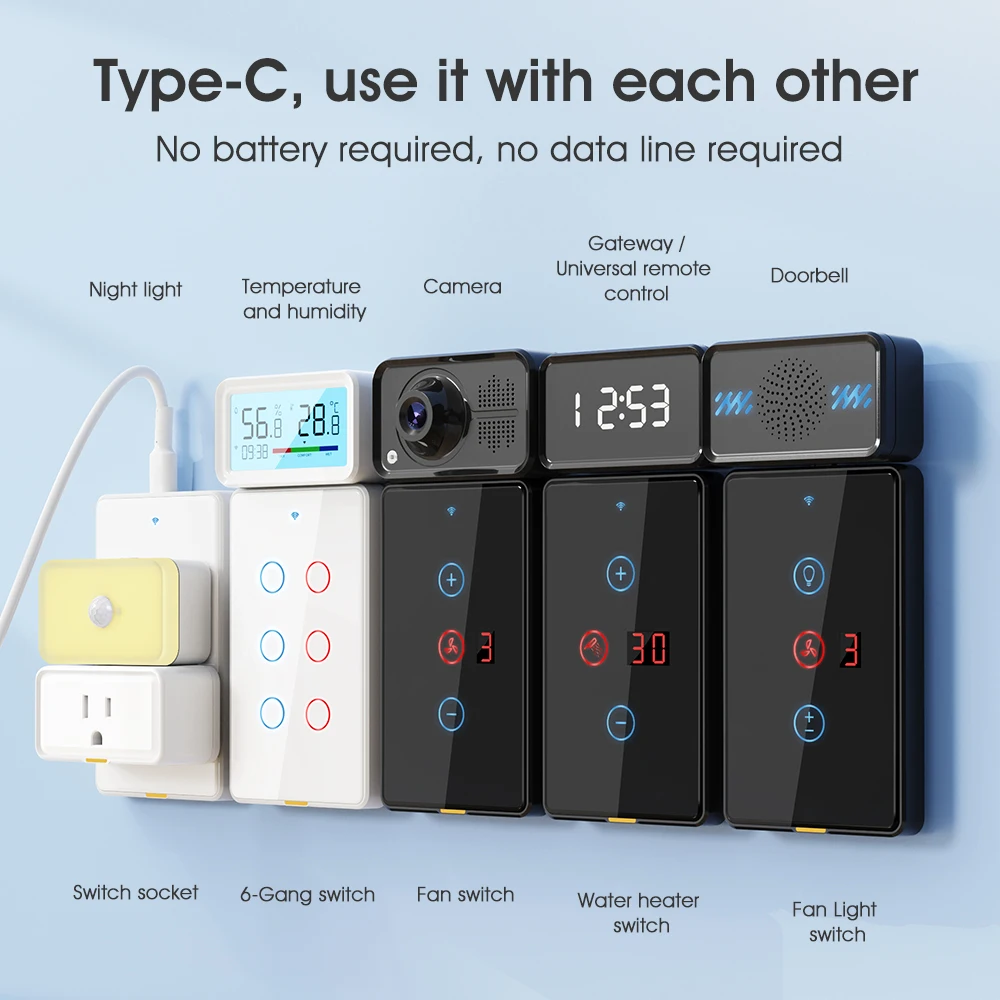

Special functions Tybe-c charging head: Tybe-c charging

Standard: US

Standard type: US Standard

USB output parameters: 5V 1A

Voice Control: Alexa Google Home Yandex alice

Working temperature: -20 ° C - 50 ° C

HIGHLIGHT :

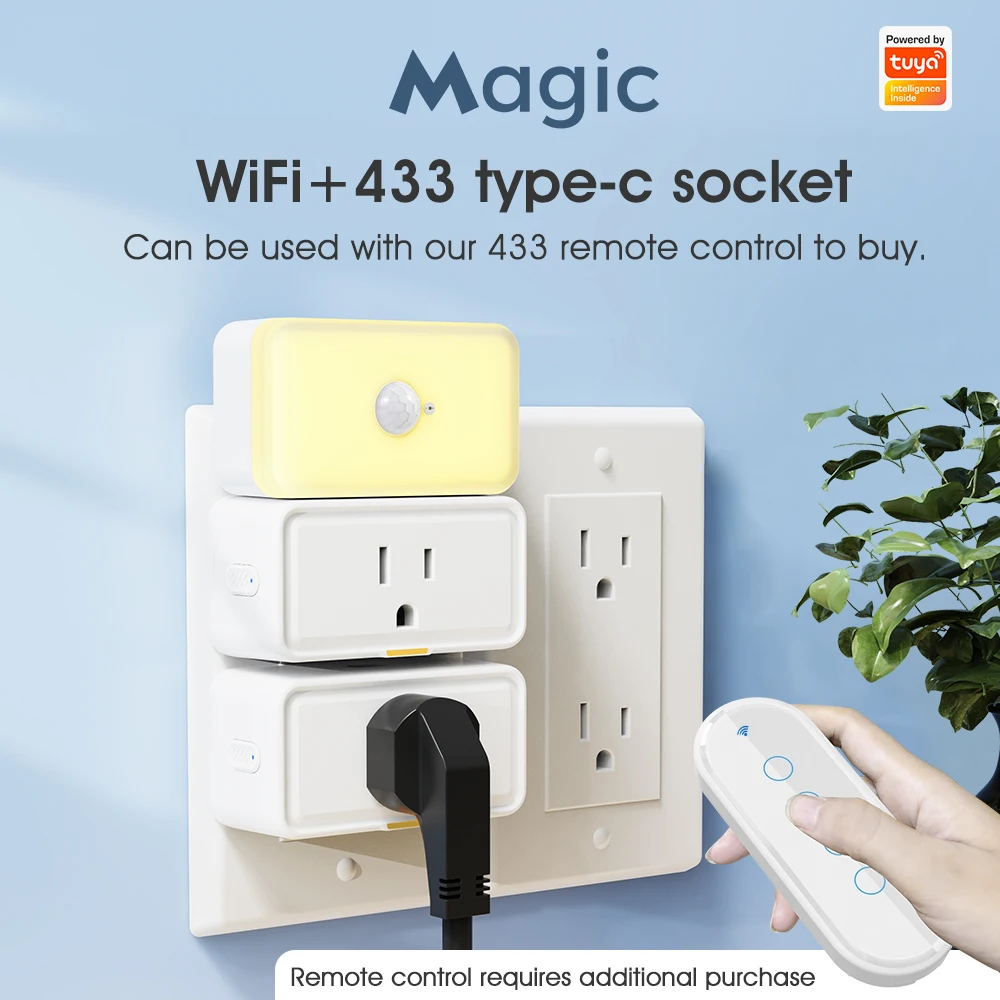

【WIFI+RF433】We continuously optimize our products, improve them, and add sockets with WIFI+RF433 RF function. This product can be used in conjunction with the RF433 remote control. When you are worried about waking up your family with voice control at night and it's inconvenient to turn on your phone control, you can use a remote control to make it more convenient. The open distance is about 100 meters, and the actual home environment distance is about 20 meters (A style only)

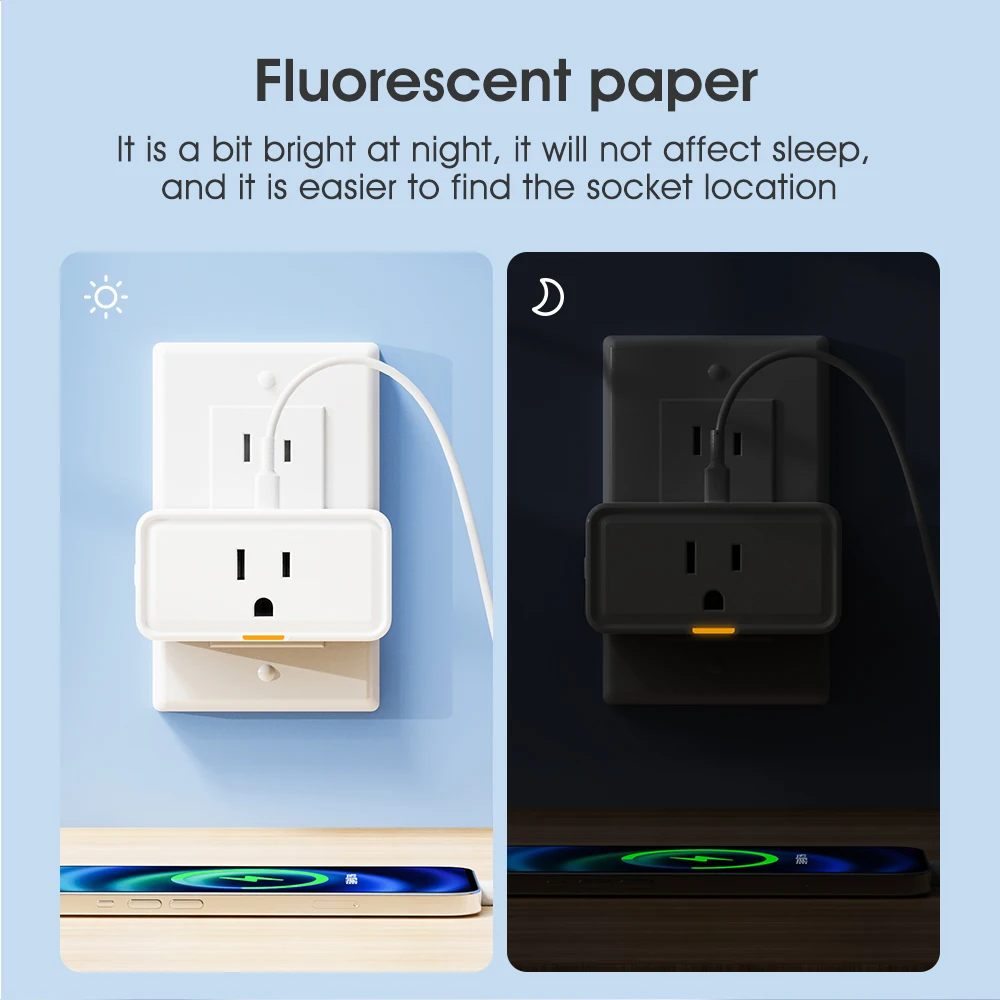

【Fluorescent Bar Design】The bottom of the socket is equipped with a fluorescent strip that emits a faint reminder, allowing you to easily find the socket location at night. At the same time, the brightness of the light strip is moderate and will not affect sleep.

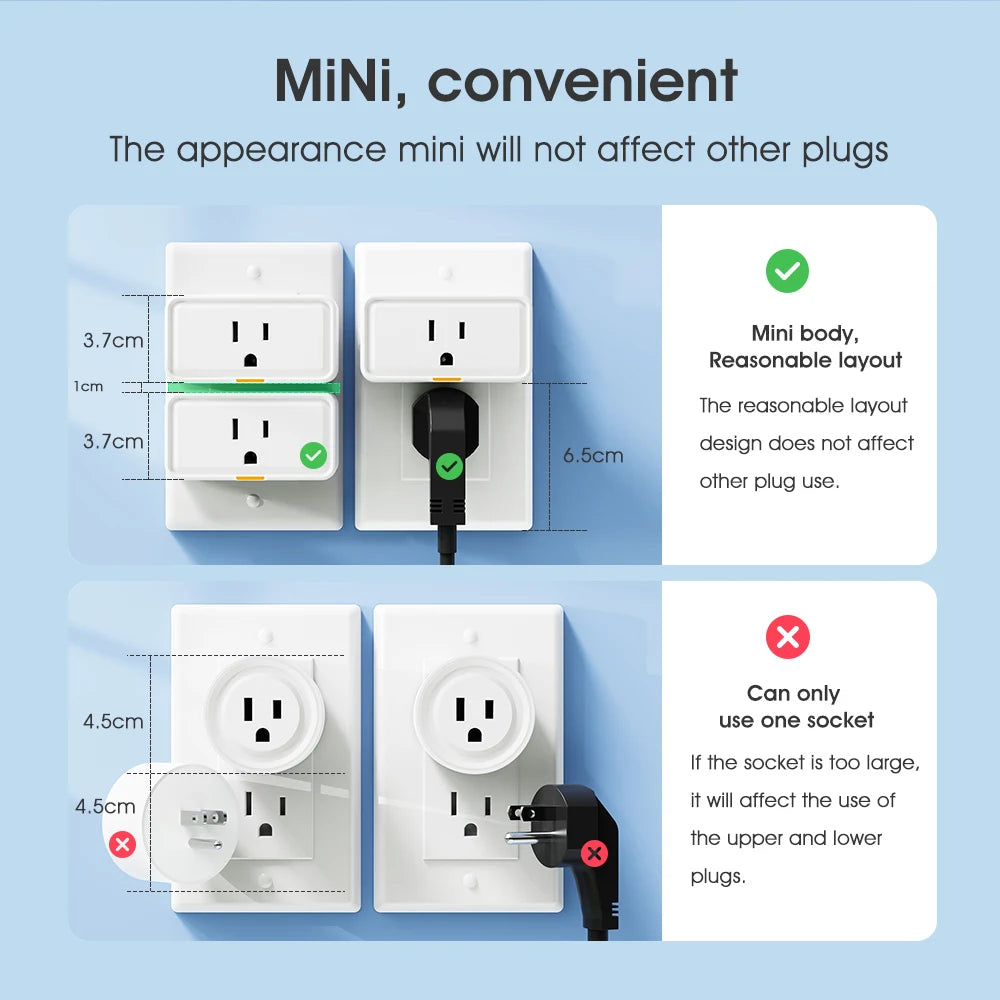

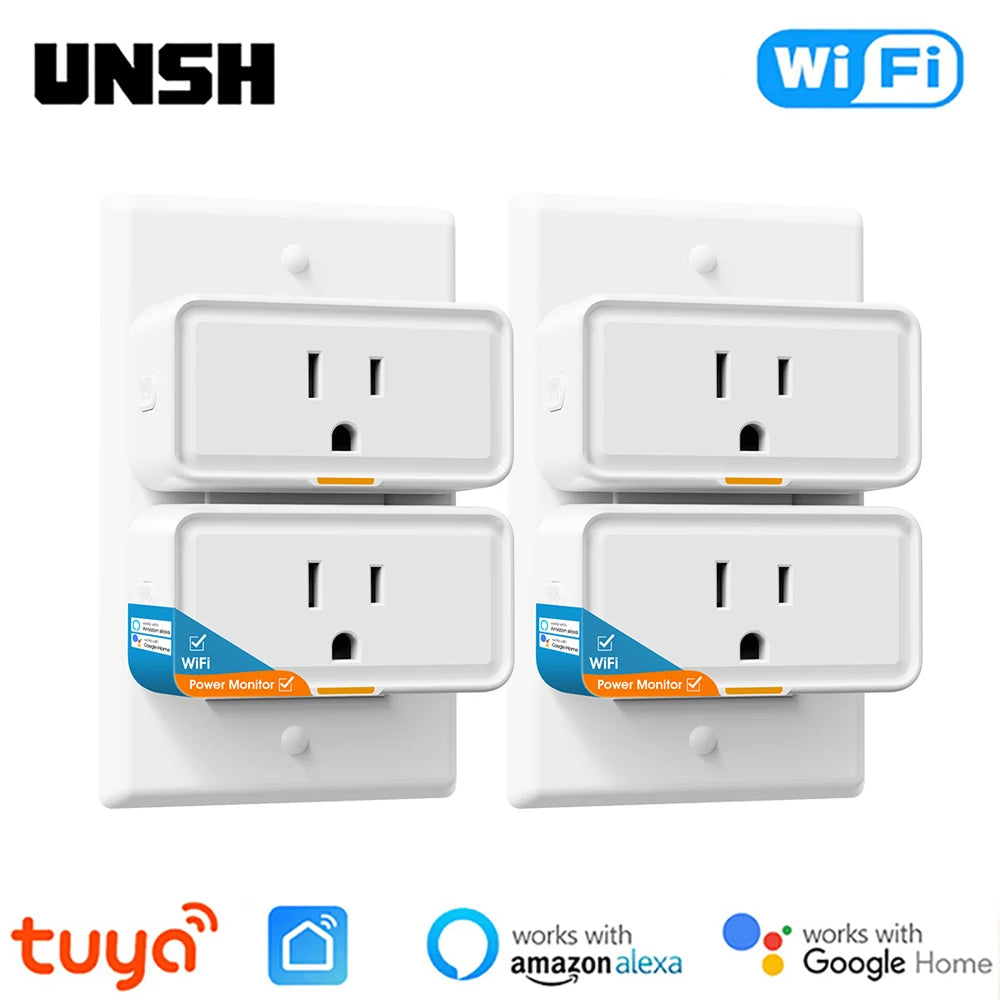

【Mini body, not occupying space】The compact mini can stack two mini smart plugs in the same socket, with a scientific layout that saves space and does not affect the use of other plugs, making it very convenient and practical.

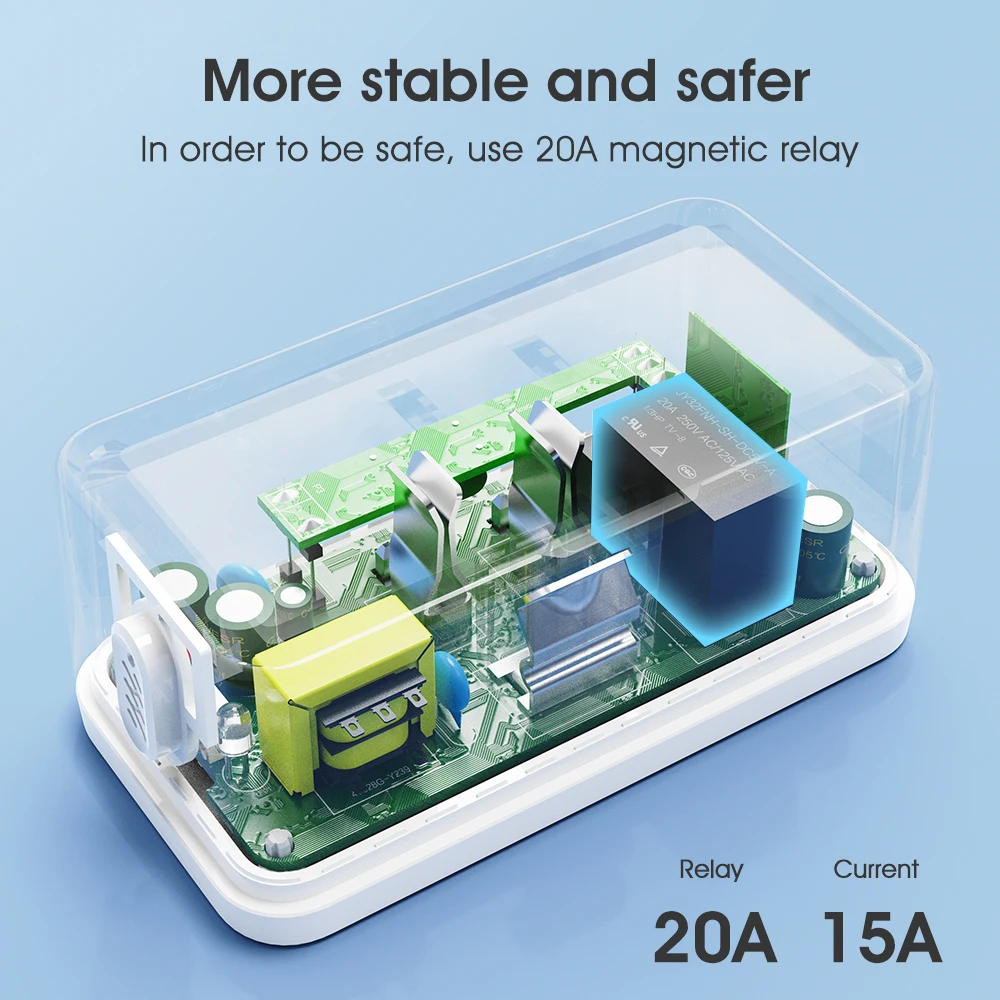

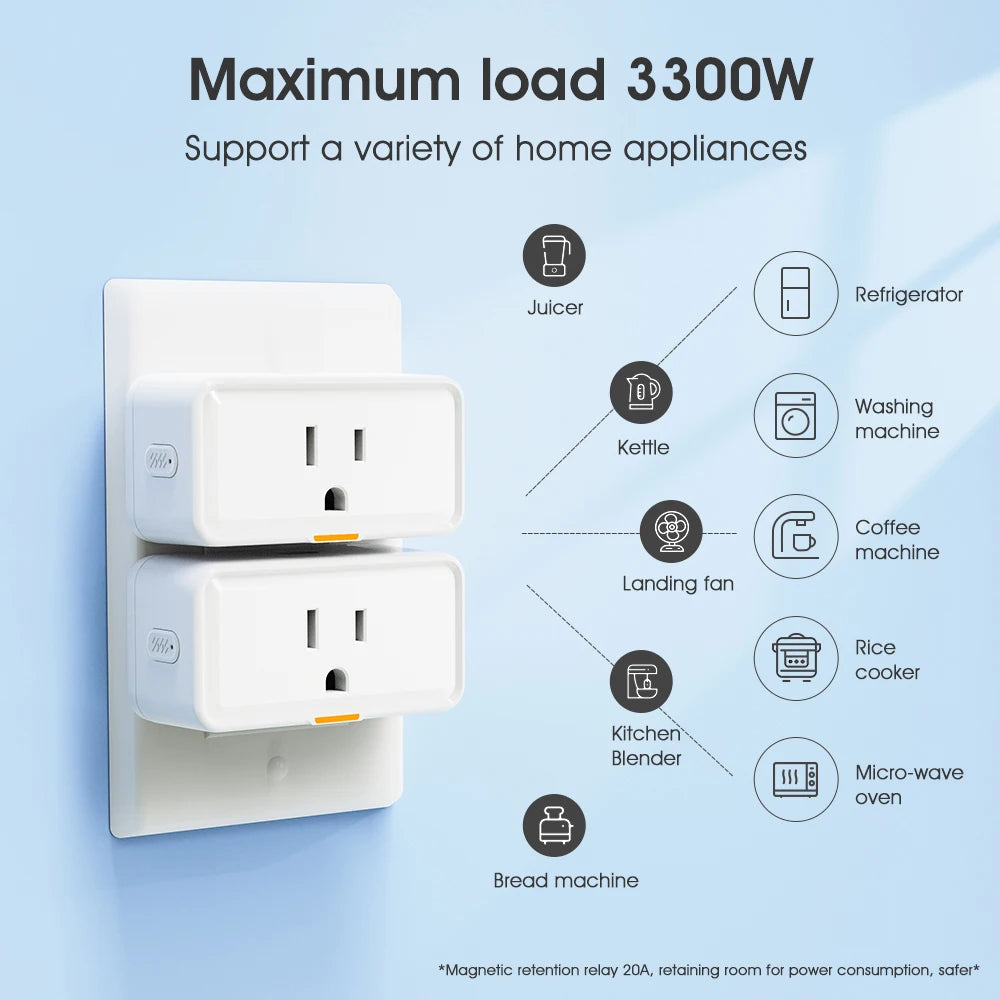

【Ultra high power】For greater safety, we use a 20A relay, but we recommend using a maximum current of 15A. The maximum power is 3300W, supporting various household appliances such as refrigerators, fans, washing machines, etc.

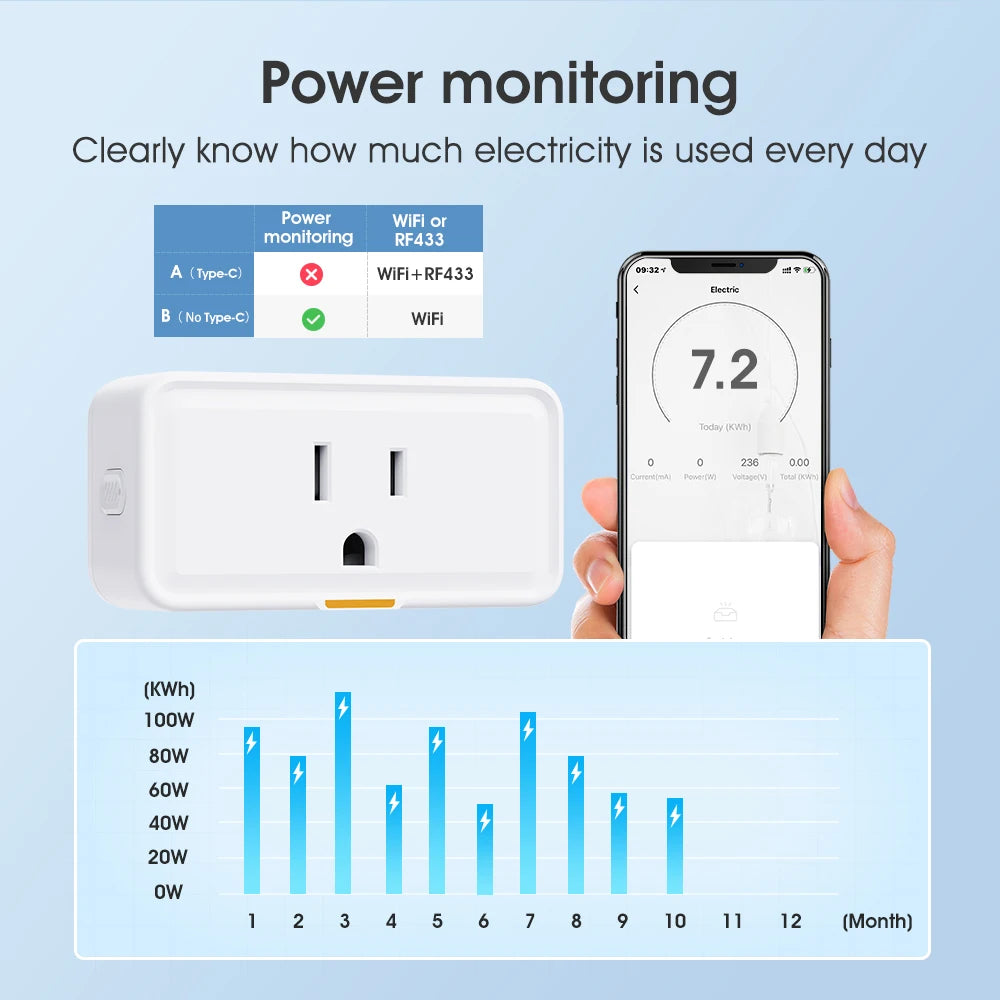

【Electricity Statistics】Real time monitoring of electricity consumption is beneficial for controlling electricity consumption. Users can promptly identify energy waste issues and take corresponding measures to reduce energy consumption, achieve energy-saving and environmental protection goals, and help users better manage energy consumption. (B style only)

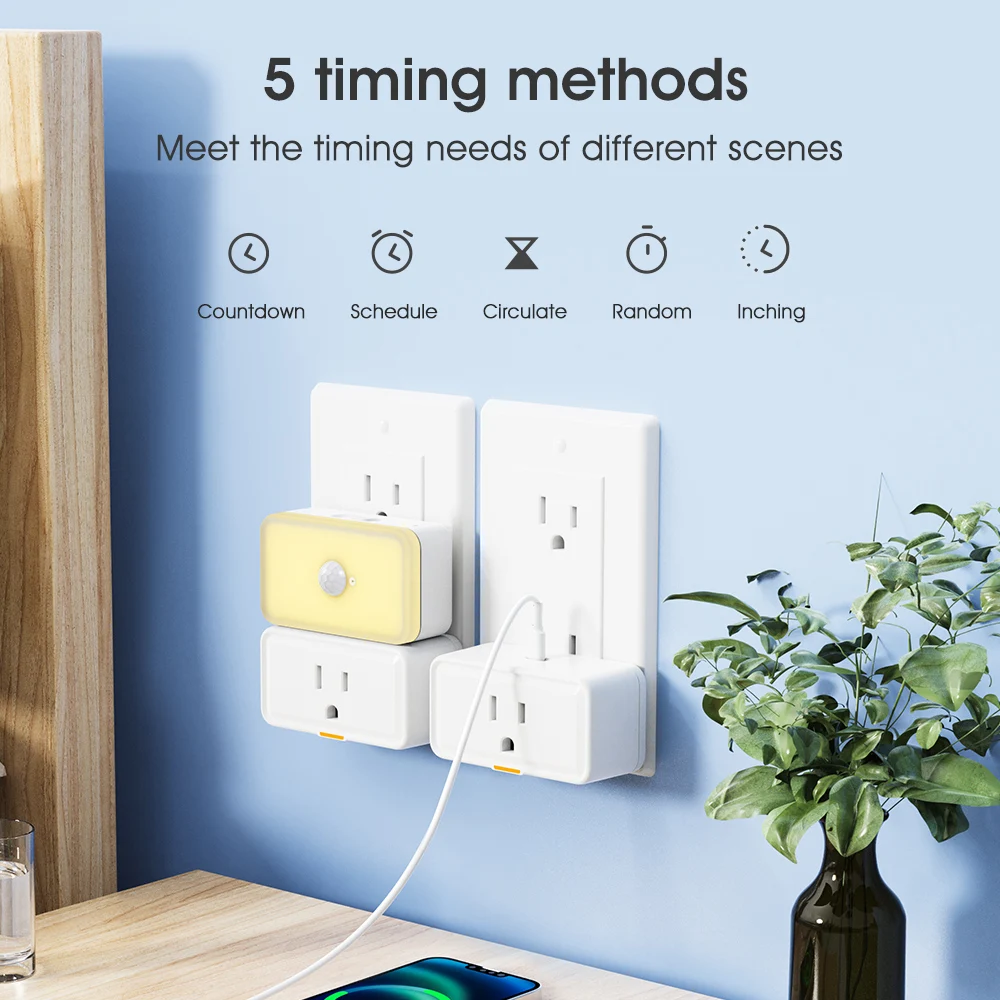

【Timing function】You can set the timing according to your personal habits to automatically control the switch, supporting timing, countdown, loop timing, random timing, and jog timing. It can help us make reasonable use of electrical appliances, avoid prolonged and unnecessary use, thereby extending product life and saving electricity consumption.

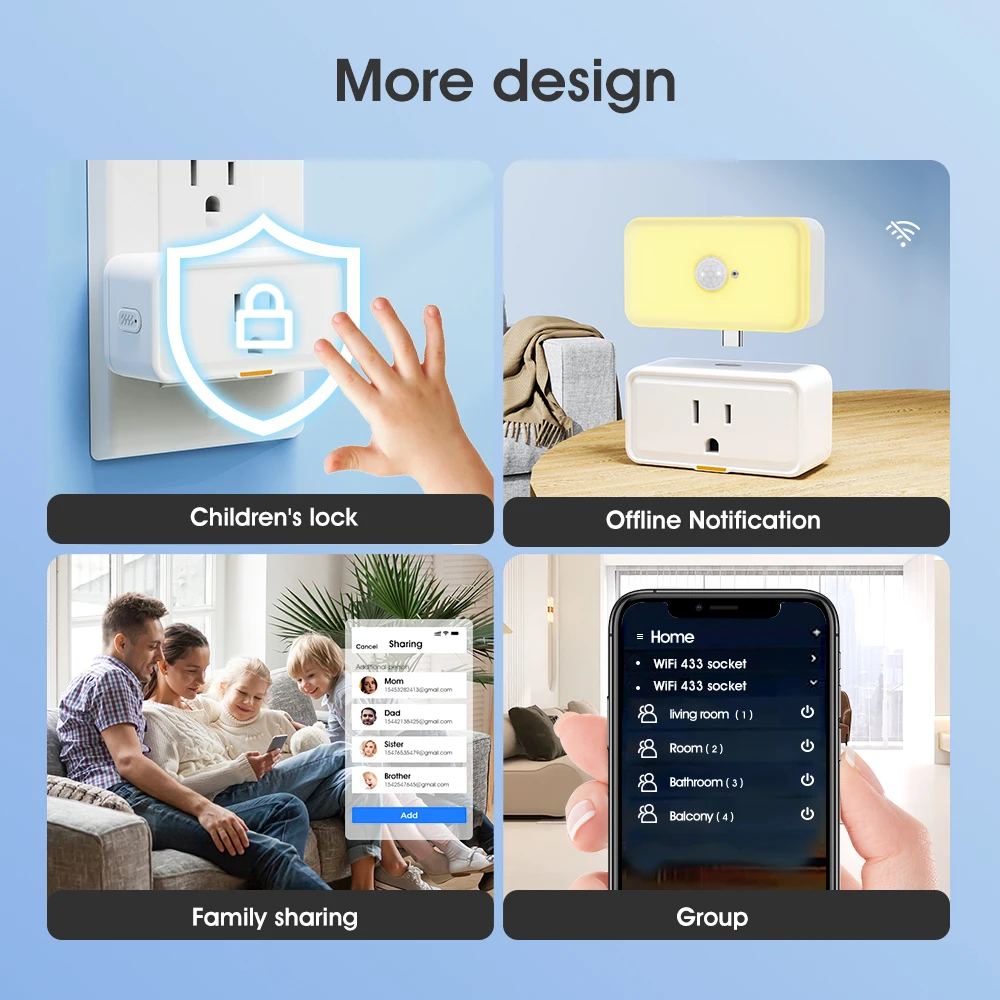

【Group Control】Set up groups for smart plugs and control multiple smart sockets with one command through the application. For example, setting up a 'sleep group' allows you to turn off all devices in the group with just one click when you want to sleep.

【Device Sharing】Through the device sharing function, every family member can easily enjoy the convenience of a smart plug through their own phone.

【Three states】Default on, default off, memory function. For example, the power outage memory function of a smart socket can record the state of the last use. When the socket is powered on again after a power outage, it will automatically revert to its previous state without the need to reset. This can save users' time and energy, and improve the convenience of use. You can also independently set the device status to be powered on again after a power outage.

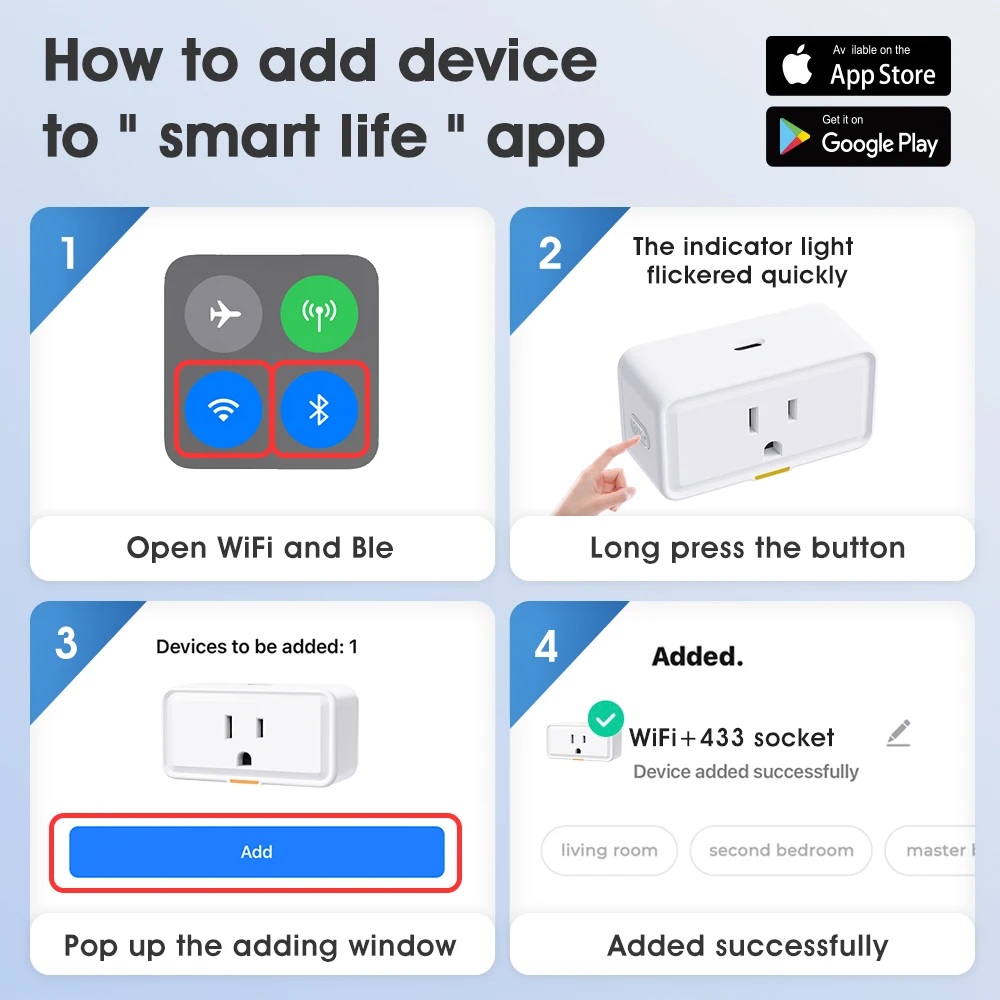

【WiFi+Bluetooth Dual Mode】Turn on Bluetooth on your phone, and through the Bluetooth module, you can automatically search the network for quick network allocation and connect to the app faster. Approximately twice the network speed compared to only WiFi single mode connection

SPECIFICATION :

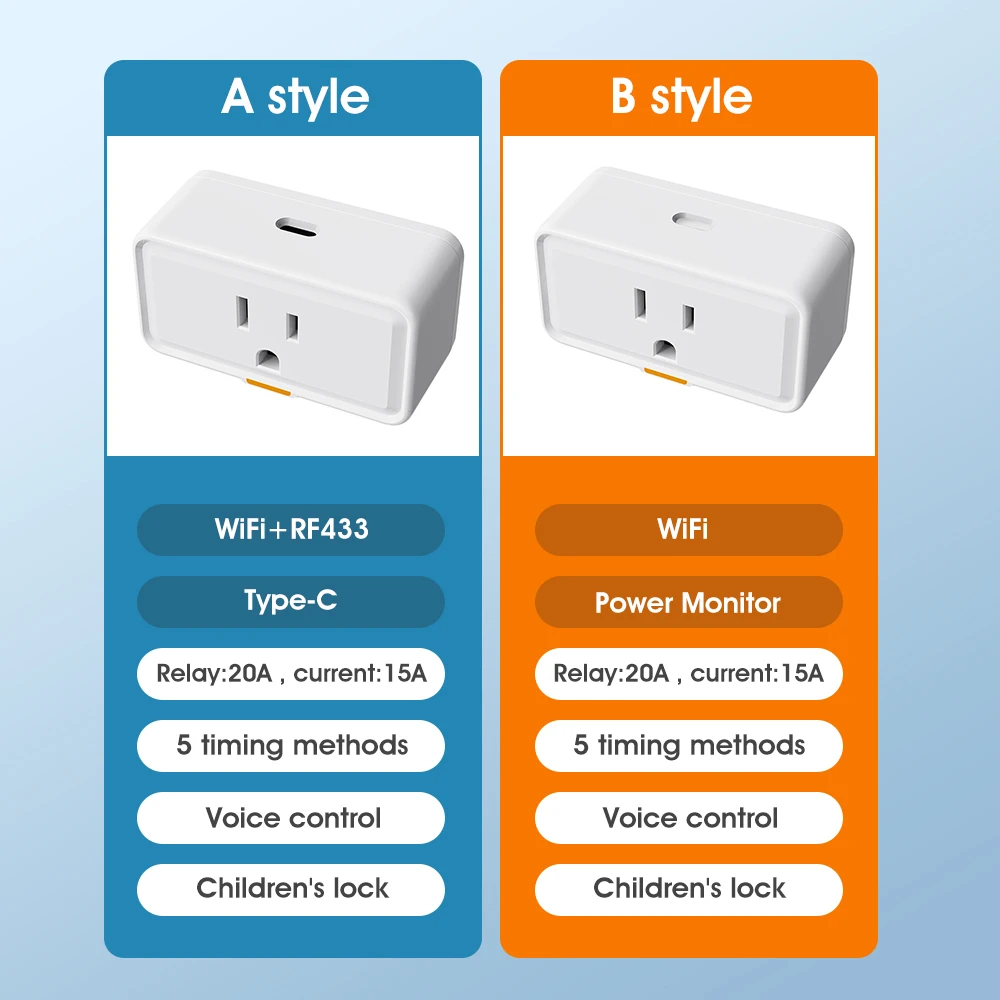

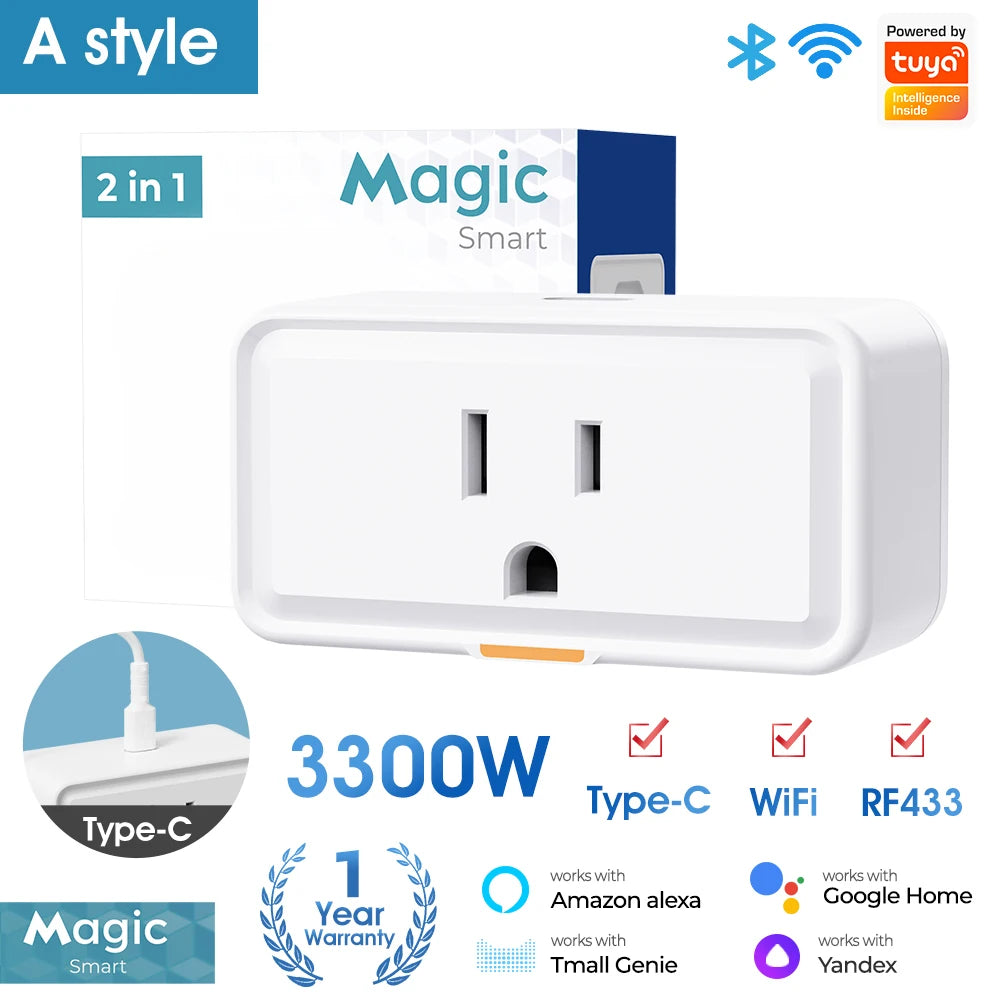

A style Rubik's Cube WIFI+RF433 US standard socket specifications:

--Connection method: WIFI+RF433

--Power: 1500W/110V~3300W/220V

--Voltage: AC110-240V

--Type-C output: 5V 1A

--Relay: 20A

--Maximum current: 15A

--Wireless frequency: 2.4GHz/433MHz

--RF433MHz encoding method: learning code EV 1527

--RF433MHz modulation method: ASK

--RF433MHz distance: 100 meters (in open air)

--Material: V0 flame-retardant PC+ABS

--Working temperature: -20 ° C~65 ° C

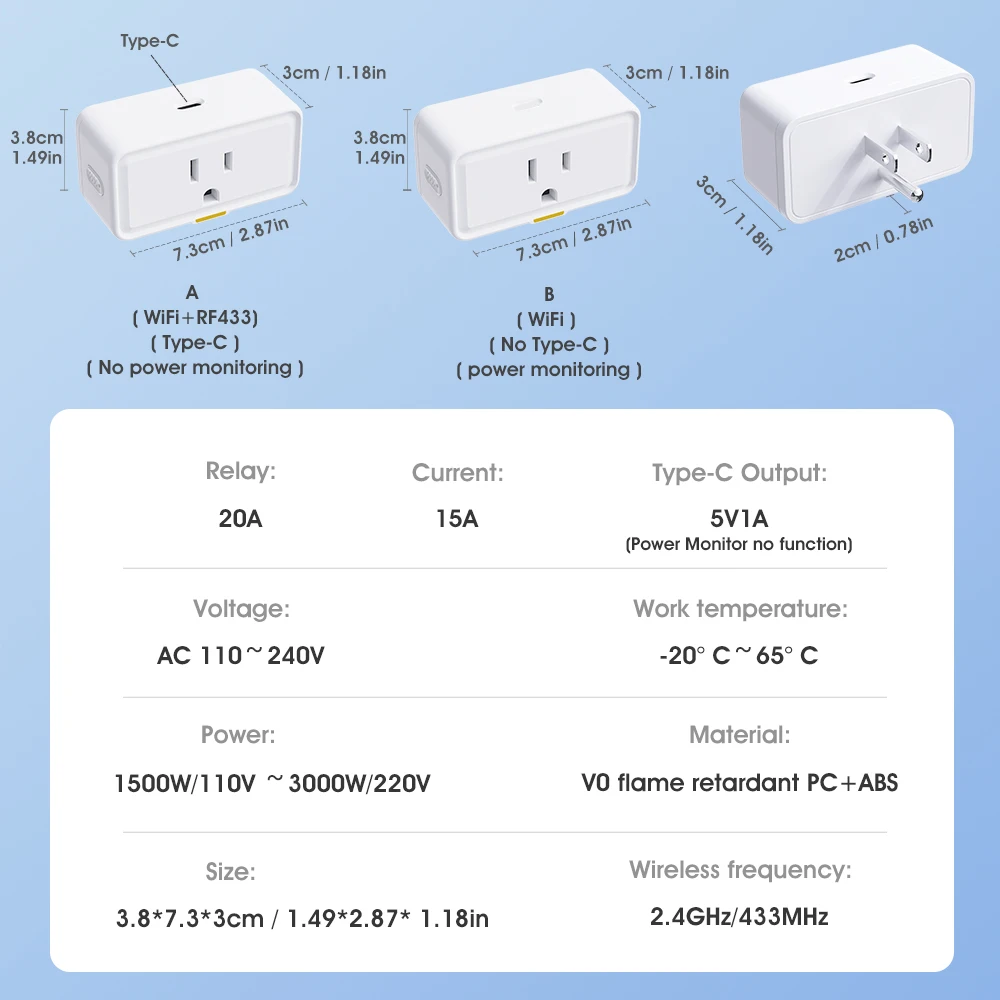

--Size: 7.3cm * 3.8cm * 3cm/1.49 * 2.87 * 1.18 inches

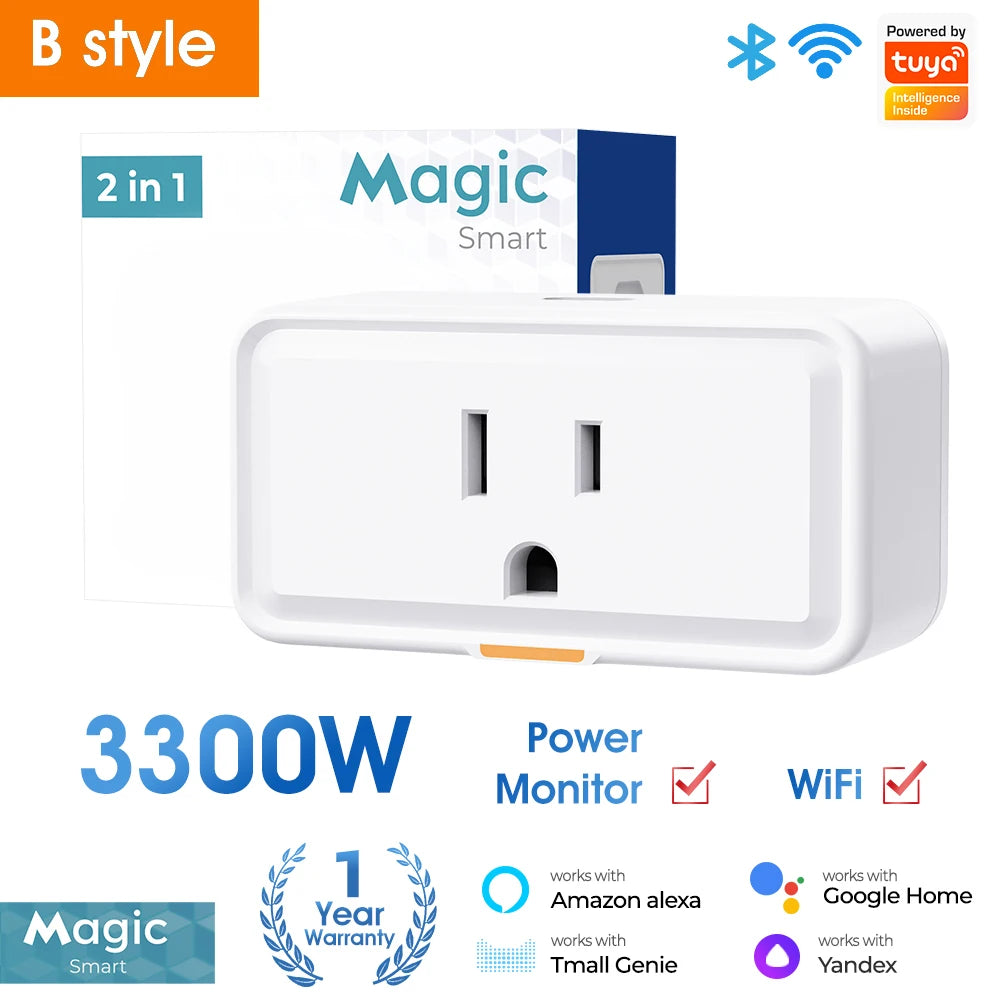

B style Rubik's Cube WIFI American standard socket specifications:

--Connection method: WIFI

--Power: 1500W/110V~3300W/220V

--Voltage: AC110-240V

--Relay: 20A

--Maximum current: 15A

--Wireless frequency: 2.4GHz

--Material: V0 flame-retardant PC+ABS

--Working temperature: -20 ° C~65 ° C

--Size: 7.3cm * 3.8cm * 3cm/1.49 * 2.87 * 1.18 inches

matters needing attention

1. There are options with and without typec in the options, please pay attention to purchasing

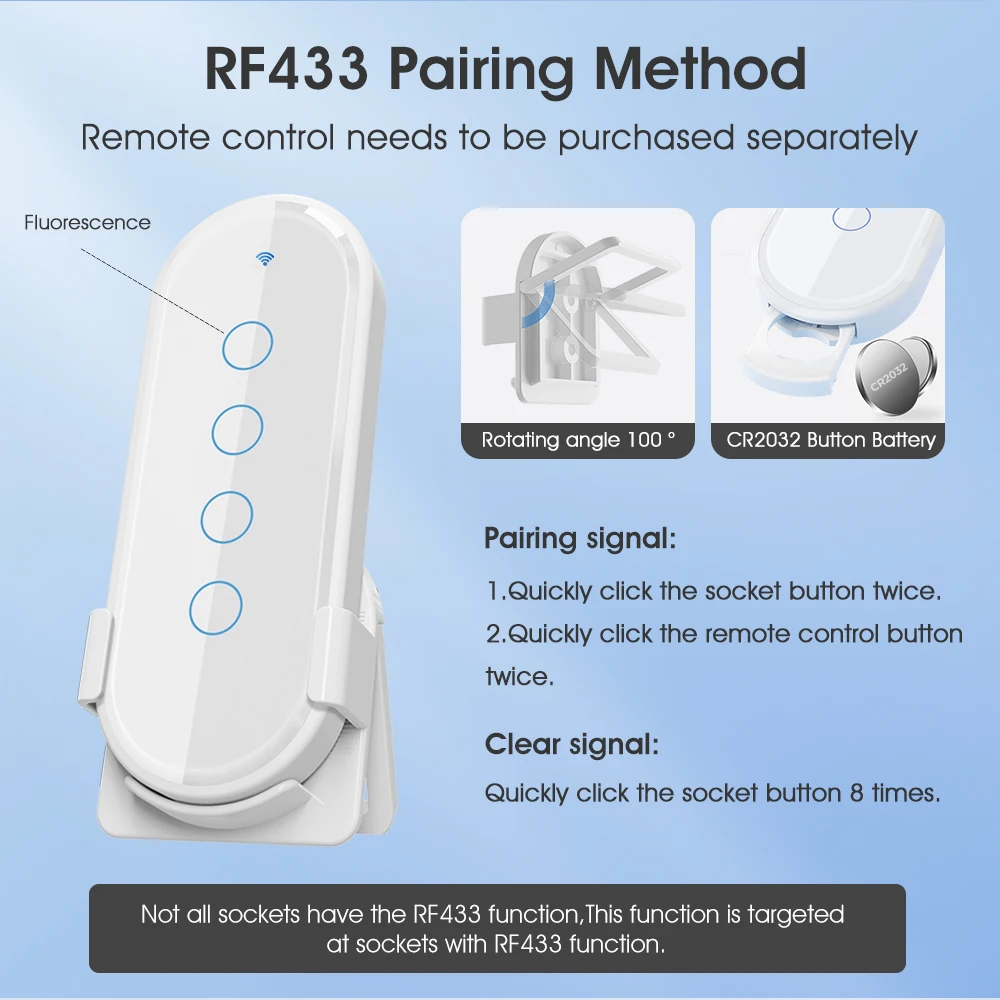

RF433 remote control requires additional purchase

3. RF433MHZ is an open distance of 100 meters. The more obstacles there are, the more severe the signal attenuation will be, and the distance will be shortened. Each family has different environments and distances, approximately 20 meters away

4. Bluetooth is only used for network signal connection and cannot be used alone. WIFI+Bluetooth is more stable
